Ceramic Sintering Pusher Furnace Bottom Plate Single Plate High Temperature Resistance

Ceramic Sintering Pusher Furnace Bottom Plate Single Plate High Temperature Resistance

MOQ: 1
Price: 10,000-30,000 USD/unit
Standard Packaging: Export Packing
Delivery Period: 30 DAYS
Payment Method: L/C,T/T
Supply Capacity: 10 PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
Aopuda
Certification
CE,UL
Model Number
Pusher Furnace
Furnace Size:
16000L×310W×220H(mm)
Effective Furnace Size:
16000×240×175 (L×W×H)
Push Plate Size:
240×240×45
Maximum Temperature:
1500℃
Long-term Use Temperature:
1100-1500℃
Furnace Body Dimensions:
About 18250L×1580W×1680H (mm)
Highlight:

Ceramic Sintering Pusher Furnace

,

Pusher Furnace Bottom Plate

,

Pusher Furnace Single Plate

Product Description

Ceramic Sintering Pusher Furnace Bottom Plate Single Plate High Temperature Resistance



Brief Description:
The single push plate high temperature resistance furnace is an industrial electric furnace designed for continuous high temperature heat treatment. It adopts a push plate conveying structure and is suitable for sintering, calcining and heat treatment processes in industries such as ceramics, powder metallurgy, and lithium battery materials. The equipment has the characteristics of precise temperature control, energy saving and high efficiency, and a high degree of automation. The maximum operating temperature can reach 1500℃, meeting the stringent sintering requirements of different materials.

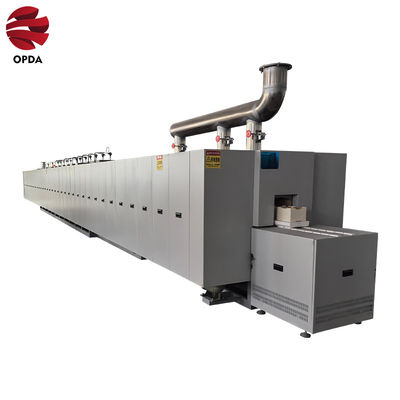

Product Image:

Ceramic Sintering Pusher Furnace Bottom Plate Single Plate High Temperature Resistance 0



Product Parameters:

(1) Furnace size: 16000L×310W×220H(mm)
(2) Effective furnace size: 16000×240×175 (L×W×H)
(3) Push plate size: 240×240×45
(4) Maximum temperature: 1500℃
(5) Long-term use temperature: 1100-1500℃
(6) Furnace body dimensions: about 18250L×1580W×1680H (mm)



Industry Applications and Advantages:

This electric furnace is a push plate type resistance furnace. Heating elements are arranged vertically on the left and right sides of the tunnel for heating. The temperature of each temperature zone is set according to the process. The charging sagger is placed on the push plate for transportation. The furnace body is hydraulically driven. It is mainly used for sintering alumina ceramics and can be specially designed according to the sintering process.



Production Workshop:
Ceramic Sintering Pusher Furnace Bottom Plate Single Plate High Temperature Resistance 1



Related Products:
Ceramic Sintering Pusher Furnace Bottom Plate Single Plate High Temperature Resistance 2

Customer Visits:
Ceramic Sintering Pusher Furnace Bottom Plate Single Plate High Temperature Resistance 3

Offline Exhibitions:
Ceramic Sintering Pusher Furnace Bottom Plate Single Plate High Temperature Resistance 4

Company Introduction:
Ceramic Sintering Pusher Furnace Bottom Plate Single Plate High Temperature Resistance 5



FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
