High Temperature Uniformity Box Furnace Diagram PID Intelligent Temperature Control Heating Element

High Temperature Uniformity Box Furnace Diagram PID Intelligent Temperature Control Heating Element

Brief Description:
Designed for university laboratories and scientific research institutions, it is equipped with a PID intelligent temperature control system and a 30-segment programmable controller, which can achieve accurate temperature control of ±0.5℃. The furnace is made of high-density ceramic fiber material and energy-saving silicon-molybdenum rod heating elements, which effectively reduces energy consumption while ensuring a stable output of 1600℃ high temperature. The equipment supports multi-gas atmosphere control and can be fed with inert gases such as argon and nitrogen to meet the diverse experimental needs of material annealing, sintering, ashing, etc.

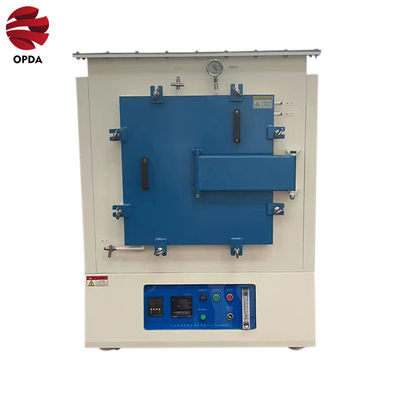

Product Image:

Product Parameters:

(1) Furnace size: 180X150X150
(2) Power: 5.5KW
(3) Rated temperature: 1750℃
(4) Maximum temperature: 1800℃
(5) Heating rate: ≤20℃/min, recommended heating rate: ≤10℃/min
(6) Voltage: 220V
(7) Heating element: Kanthal Super-1900 silicon-molybdenum rod imported from Sweden (6 pieces)
(8) Thermocouple: PtRh40-PtRh20 (imported from the United States, temperature measurement range: 0-1870℃)
(9) Temperature control method: British Continental 3504 temperature control instrument, intelligent PID adjustment, 500-segment program temperature control

Industry Applications and Advantages:
This box-type furnace adopts a double-layer shell structure, and the furnace chamber adopts 1900 type alumina polycrystalline fiber material imported from Mitsubishi, Japan. The double-layer furnace shell is equipped with an air cooling system, which can quickly increase and decrease the temperature. The power regulator is used to control the current and can limit the current throughout the whole process. The furnace is equipped with a travel switch for powering off when the door is opened, an ammeter, a voltmeter, etc.

Production Workshop:

Related Products:


Customer Visits:


Offline Exhibitions:


Company Introduction:

FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
