Exhaust Treatment System Rotary Kiln Calciner Inside Modular Assembly 380V Rated Voltage

Exhaust Treatment System Rotary Kiln Furnace Inside Modular Assembly 380V Rated Voltage

Brief Description:
The rotary kiln mixes the materials evenly and gradually moves to the lower end through the rotation of the cylinder. The burner provides a high-temperature heat source to form a countercurrent or parallel heat exchange. The cylinder inclination angle (usually 3-4%) and the rotation speed (usually 0.5-5 RPM) coordinately control the material residence time to ensure sufficient chemical reaction, which is suitable for limestone calcination, alumina roasting and other processes.

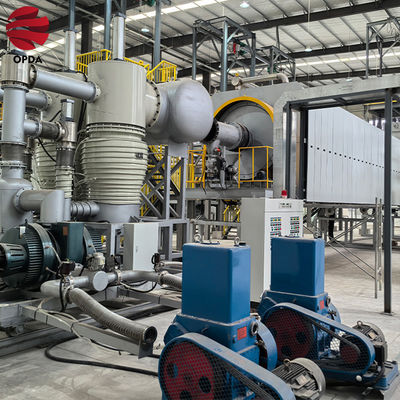

Product Image:

Product Parameters:

(1) Rated temperature: 1050℃
(2) Working temperature: 1000℃
(3) Rated power: 200KW
(4) Operating power: ~120KW
(5) Power supply: 380V
(6) Number of heating zones: 5 zones
(7) Furnace temperature stability: ≤±1℃
(8) Furnace temperature uniformity: ≤±5℃
(9) Common heating rate: 1-10℃/min (continuously adjustable)
(10) Furnace size (L×WXH): 5000×1000×1200mm (heating zone)
(11) Furnace tube size (DXL): 800 ×5000mm
(12) Furnace body dimensions (L×W×H): ~5600×1880×2000mm
(13) Equipment dimensions (L×W×H): ~7500×2180×2600mm
(14) Furnace tube speed: 1~5 rpm (continuously adjustable)
(15) Furnace body inclination: -2~14° adjustable

Industry Applications and Advantages:
The furnace tube volume is about 2500 liters, and the effective furnace space is 375 liters. It can be used for powder particle calcination, coating, carbonization, etc.
