MOQ: | 1 |
Price: | 10,000-30,000 USD/unit |
Standard Packaging: | Export Packing |
Delivery Period: | 30 DAYS |
Payment Method: | L/C,T/T |
Supply Capacity: | 10 PCS/MONTH |
Low Pressure Carburizing Mesh Belt Furnace Brazing Atmosphere Powder Metallurgy Sintering
Brief Description:
The mesh belt furnace has become an indispensable heat treatment equipment in modern manufacturing industry due to its stable and reliable performance and excellent comprehensive performance. It can not only meet the large-scale and high-efficiency production needs of enterprises, but also ensure the high quality and consistency of products. From the design and manufacture of equipment to installation and commissioning, and then to the later maintenance, the professional technical team provides users with a full range of service support to ensure that the mesh belt furnace always maintains the best operating state, helping enterprises to stand out in the fierce market competition and enhance their core competitiveness.

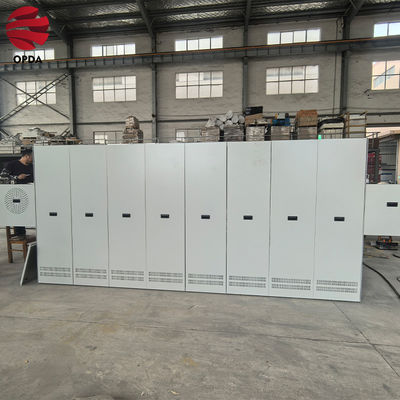

Product Image:
Product Parameters:
(1) Applicable materials: sintering, drying, annealing in the fields of electronic ceramics, functional materials, magnetic materials, electronic powders, electronic devices, etc.
(2) Atmosphere selection: air, nitrogen, oxygen, hydrogen, nitrogen-hydrogen mixture
(3) Rated temperature: 900℃
(4) Applicable temperature: 850℃
(5) Furnace size: 19000L×750W×200H (mm) can be customized according to the customer's actual process and output requirements
(6) Equipment dimensions: about 22000L×2000W×1450H (mm)
(7) Furnace material: The furnace material is made of high-quality lightweight alumina fiber cotton board
(8) Insulation material: The insulation material is made of high-quality refractory fiber material. Good insulation effect, small heat capacity, energy saving and environmental protection
(9) Transmission method: Mechanical transmission is adopted. It is composed of a variable frequency speed-regulated motor, a cycloidal pinwheel reducer, a sprocket, a roller, a roller, a stopper, a mesh belt, etc. The transmission device has an overload protection device to prevent the mesh belt from being damaged due to overloading due to hanging. A tensioning device is installed at the bottom of the furnace body. The pressure of the tensioning wheel is adjusted by the spring to keep the mesh belt at a certain tension.
Industry Applications and Advantages:
(1) Reasonable layout: The whole furnace consists of three parts: furnace body, mesh belt transmission system and temperature control system
(2) High temperature uniformity: Reasonable air intake structure and high-quality furnace materials can ensure that the furnace temperature uniformity is controlled within ±5℃
(3) Multiple atmospheres: Suitable for a variety of atmosphere conditions to cope with the customer's sintering process
(4) High temperature control accuracy: Imported temperature control instruments are used, and the temperature control accuracy can reach ±1℃
Production Workshop:
Related Products:
Customer Visits:
Offline Exhibitions:
Company Introduction:
FAQ:
Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;
Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.
Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.
Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at 1set for machine. Pls contact us for details we will try to meet your requirement.
Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.
Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
