Compact Layout Roller Hearth Kiln Diagram Observation Window Design Accurate Temperature Control

Compact Layout Roller Hearth Kiln Diagram Observation Window Design Accurate Temperature Control

Brief Description:
At a time when energy conservation and environmental protection have become important trends in industrial development, roller furnaces have shown significant advantages. It uses advanced energy-saving technology, optimizes the heating system and insulation structure, reduces heat loss, and reduces energy consumption. At the same time, the characteristics of low pollution emissions meet environmental protection requirements and effectively reduce the generation of harmful gases and dust during the production process. In addition, the combination of intelligent operation and automated control can monitor and adjust the production process in real time, further improve energy efficiency, help enterprises achieve green production, and become the preferred equipment for sustainable development in many industrial fields.

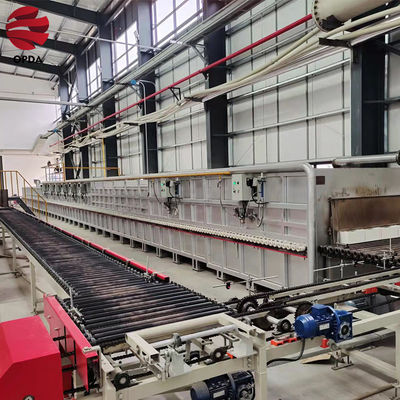

Product Image:

Product Parameters:

(1) Furnace length: 28-36 meters, assembled type
(2) Furnace mouth section: 0.8-1.3 meters (two or three plates)
(3) Maximum operating temperature: 850℃ (temperature adjustable)
(4) Electric power: 120-250KW, 380V
(5) Heating method: electric heating
(6) Electric heating elements: electric furnace wire, silicon carbon rod
(7) Temperature control method: PID intelligent digital display temperature control, SCR thyristor module control, linear proportional output, manual automatic adjustment, temperature control accuracy ±1℃ (computer remote control can be designed)
(8) Temperature control points: 4-6
(9) Roller specifications: φ40mm high-aluminum ceramic roller
(10) Transmission method: helical gear
(11) Roller speed control: two-stage variable frequency speed regulation

Industry Applications and Advantages:
This furnace is mainly used for the production of 4-10 (mm) crystal glass mosaic products. The total length of the furnace is 28-36 meters and the maximum operating temperature is 800℃.

Production Workshop:

Related Products:


Customer Visits:


Offline Exhibitions:


Company Introduction:

FAQ:
