High Aluminum Ceramic Roller Continuous Roller Hearth Furnace PID Intelligent Temperature Control Helical Gear

High Aluminum Ceramic Roller Roller Hearth Kiln PID Intelligent Temperature Control Helical Gear

Brief Description:

The roller kiln is an advanced continuous heat treatment equipment, and its core advantages are high efficiency, energy saving, and precise temperature control. The interior of the kiln is composed of a conveying system composed of high-temperature resistant rollers. Driven by the rollers, the workpieces pass through the preheating, firing and cooling zones at a uniform speed to achieve fully automated production. The roller kiln can adjust the temperature, roller speed and atmosphere according to the process requirements, and is suitable for the sintering of high-end materials such as ceramics, lithium batteries, and electronic ceramics. In addition, the roller kiln adopts waste heat recovery technology to greatly reduce energy consumption. At the same time, it cooperates with intelligent control systems to ensure product consistency and yield. It is an important equipment for modern industrial production.

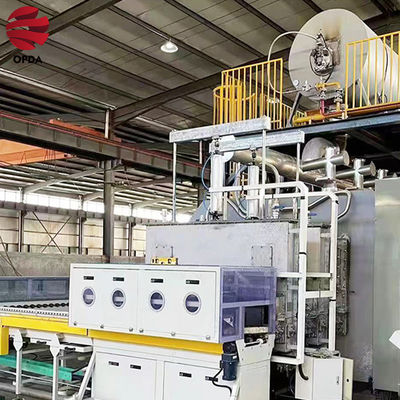

Product Image:

Product Parameters:

(1) Furnace length: 28-36 meters, assembled type
(2) Furnace mouth section: 0.8-1.3 meters (two or three plates)
(3) Maximum operating temperature: 850℃ (temperature adjustable)
(4) Electric power: 120-250KW, 380V
(5) Heating method: electric heating
(6) Electric heating elements: electric furnace wire, silicon carbon rod
(7) Temperature control method: PID intelligent digital display temperature control, SCR thyristor module control, linear proportional output, manual automatic adjustment, temperature control accuracy ±1℃ (computer remote control can be designed)
(8) Temperature control points: 4-6
(9) Roller specifications: φ40mm high-aluminum ceramic roller
(10) Transmission method: helical gear
(11) Roller speed control: two-stage variable frequency speed regulation

Industry Applications and Advantages:
This furnace is mainly used for the production of 4-10 (mm) crystal glass mosaic products. The total length of the furnace is 28-36 meters and the maximum operating temperature is 800℃.

Production Workshop:

Related Products:


Customer Visits:


Offline Exhibitions:


Company Introduction:

FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
