Assembled Type Roller Hearth Kiln Electric Heating Frequency Control Rhk Kiln

Assembled Type Roller Hearth Kiln Electric Heating Frequency Control

Brief Description:

The roller kiln is a continuous industrial kiln based on a roller drive system, which is mainly used for the firing and heat treatment of ceramics, refractory materials, lithium batteries and electronic components. Its working principle is to drive the high-temperature resistant rollers to rotate through the motor, driving the workpieces to smoothly pass through different temperature zones to complete the drying, sintering or cooling process. The roller kiln adopts a modular design, and the length, temperature and atmosphere (such as oxidation or reduction environment) can be adjusted according to production needs, and is equipped with an intelligent temperature control system to ensure stable product quality. Compared with traditional kilns, roller kilns have the characteristics of high production efficiency, energy saving and environmental protection, and a high degree of automation. It has become one of the key equipment in the modern manufacturing industry.

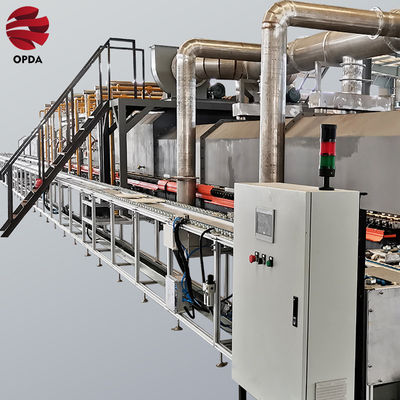

Product Image:

Product Parameters:

(1) Furnace length: 28-36 meters, assembled type
(2) Furnace mouth section: 0.8-1.3 meters (two or three plates)
(3) Maximum operating temperature: 850℃ (temperature adjustable)
(4) Electric power: 120-250KW, 380V
(5) Heating method: electric heating
(6) Electric heating elements: electric furnace wire, silicon carbon rod
(7) Temperature control method: PID intelligent digital display temperature control, SCR thyristor module control, linear proportional output, manual automatic adjustment, temperature control accuracy ±1℃ (computer remote control can be designed)
(8) Temperature control points: 4-6
(9) Roller specifications: φ40mm high-aluminum ceramic roller
(10) Transmission method: helical gear
(11) Roller speed control: two-stage variable frequency speed regulation

Industry Applications and Advantages:
This furnace is mainly used for the production of 4-10 (mm) crystal glass mosaic products. The total length of the furnace is 28-36 meters and the maximum operating temperature is 800℃.

Production Workshop:

Related Products:


Customer Visits:


Offline Exhibitions:


Company Introduction:

FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
