Adjustable Temperature Roller Hearth Furnace Silicon Carbon Rod Electric Heating Element Assembled Type

Adjustable Temperature Roller Hearth Kiln Silicon Carbon Rod Electric Heating Element Assembled Type

Brief Description:

The roller kiln is a highly efficient and energy-saving continuous industrial kiln. With its stable temperature control, uniform heat treatment and automated production advantages, it has become a key equipment in the modern manufacturing industry. The kiln adopts a high-temperature resistant roller conveying system, which enables the product to complete preheating, firing and cooling in sequence during the movement process. It is suitable for ceramics, new energy, electronic materials, refractory products and other fields. The roller kiln not only has high production efficiency, but also can reduce energy consumption through waste heat recovery and intelligent temperature control system, meeting the needs of environmental protection and refined production. It is one of the core equipment of industrial heat treatment process.

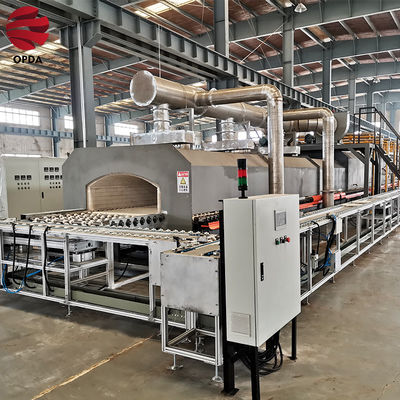

Product Image:

Product Parameters:

(1) Furnace length: 28-36 meters, assembled type
(2) Furnace mouth section: 0.8-1.3 meters (two or three plates)
(3) Maximum operating temperature: 850℃ (temperature adjustable)
(4) Electric power: 120-250KW, 380V
(5) Heating method: electric heating
(6) Electric heating elements: electric furnace wire, silicon carbon rod
(7) Temperature control method: PID intelligent digital display temperature control, SCR thyristor module control, linear proportional output, manual automatic adjustment, temperature control accuracy ±1℃ (computer remote control can be designed)
(8) Temperature control points: 4-6
(9) Roller specifications: φ40mm high-aluminum ceramic roller
(10) Transmission method: helical gear
(11) Roller speed control: two-stage variable frequency speed regulation

Industry Applications and Advantages:
This furnace is mainly used for the production of 4-10 (mm) crystal glass mosaic products. The total length of the furnace is 28-36 meters and the maximum operating temperature is 800℃.
