High Temperature Horizontal Tube Furnace Layout Quartz Vertical Tubular Furnace Split Type

High Temperature Horizontal Tube Furnace Layout Quartz Vertical Tubular Furnace Split Type

MOQ: 1
Price: 5,000-10,000 USD/unit
Standard Packaging: Export Packing
Delivery Period: 30 DAYS
Payment Method: L/C,T/T
Supply Capacity: 10 PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
Opda
Certification
CE,UL
Model Number
High Temperature Tube Furnace
Effective Charging Volume:
0.5L, 1L, 2L, 3.5L
Heating Zone Length:
440mm, 500mm, 600mm
Voltage:
220/380V
Furnace Structure:
Split Type
Gas Atmosphere:
Nitrogen, Argon, Or Vacuum
Furnace Application:
Lab ,univerisity Material Heating
Highlight:

High Temp horizontal tube furnace

,

vertical tubular furnace split type

,

layout quartz tube furnace

Product Description

Horizontal tube structure High Temperature Tube Furnace Vertical tube layout Quartz tube furnace



Brief Description:
Developed specifically for university laboratories and scientific research institutions, it uses a high-purity quartz tube furnace with excellent light transmittance, which is convenient for real-time observation of the reaction process. Equipped with a dual-zone independent heating system, it achieves ±0.5℃ precise temperature control through PID intelligent algorithm and supports 30 programmable temperature curves. The gas flow is precisely controlled by a mass flow meter, and a variety of protective gases or reaction gases can be introduced. It is widely used in scientific research scenarios such as material synthesis, catalytic reaction, and annealing experiments.

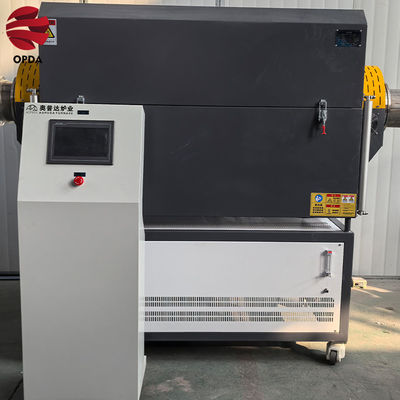

Product Image:

High Temperature Horizontal Tube Furnace Layout Quartz Vertical Tubular Furnace Split Type 0



Product Parameters:

(1) Effective charging volume (L): 0.5L, 1L, 2L, 3.5L
(2) Charging area furnace tube size: φ102*300Lmm, φ133*350Lmm, φ159*400Lmm, φ219*400Lmm
(3) Heating zone length: 440mm, 500mm, 600mm
(4) Voltage: 220/380V
(5) Power: 4-10KW
(6) Maximum temperature: 1200℃
(7) Common temperature: 1150℃
(8) Furnace tube material: 310S/quartz tube
(9) Temperature control accuracy: ±1℃
(10) Thermocouple: K type
(11) Furnace atmosphere: N2, inert gas, etc.
(12) Heating time: ≤90min



Industry Applications and Advantages:
This tube furnace is a choice for laboratory dynamic sintering applications. The split-type design of the furnace body facilitates the replacement of furnace tubes and is energy-saving and environmentally friendly.



Production Workshop:
High Temperature Horizontal Tube Furnace Layout Quartz Vertical Tubular Furnace Split Type 1



Related Products:
High Temperature Horizontal Tube Furnace Layout Quartz Vertical Tubular Furnace Split Type 2

Customer Visits:
High Temperature Horizontal Tube Furnace Layout Quartz Vertical Tubular Furnace Split Type 3

Offline Exhibitions:
High Temperature Horizontal Tube Furnace Layout Quartz Vertical Tubular Furnace Split Type 4

Company Introduction:
High Temperature Horizontal Tube Furnace Layout Quartz Vertical Tubular Furnace Split Type 5



FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
