Precise Fas Flow Control 310s Quartz Tube Furnace High Temperature Vacuum Seal Rotating Stage

Precise Fas Flow Control 310s Quartz Tube Furnace High Temperature Vacuum Seal Rotating Stage

MOQ: 1
Price: 5,000-10,000 USD/unit
Standard Packaging: Export Packing
Delivery Period: 30 DAYS
Payment Method: L/C,T/T
Supply Capacity: 10 PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
Opda
Certification
CE,UL
Model Number
High Temperature Tube Furnace
Maximum Temperature:
1200℃
Common Temperature:
1150℃
Furnace Tube Material:
310S/quartz Tube
Temperature Control Accuracy:
±1℃
Thermocouple:
K Type
Furnace Atmosphere:
N2, Inert Gas, Etc.
Highlight:

Flow Control quartz tube furnace

,

310S quartz tube furnace

,

quartz tube furnace high temp

Product Description

Precise Fas Flow Control High Temperature Tube Furnace Vacuum Seal Rotating Stage



Brief Description:
The corundum tube liner and double-layer water-cooled vacuum seal structure are used, and the ultimate vacuum degree can reach 10⁻⁵Pa, which effectively isolates oxygen and meets the requirements of oxygen-free environment processing. Equipped with a dynamic pressure compensation system, it can automatically adjust the gas pressure in the furnace to ensure process stability. It is suitable for high-end processes such as vacuum annealing of metal materials, sintering of refractory metals, and purification of semiconductor materials. The touch screen human-machine interface displays parameters such as vacuum degree and temperature in real time, and the operation is convenient and intuitive.


Product Image:

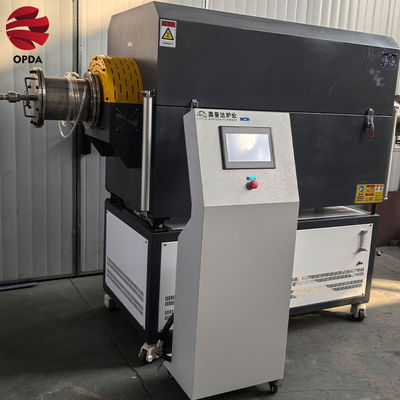

Precise Fas Flow Control 310s Quartz Tube Furnace High Temperature Vacuum Seal Rotating Stage 0



Product Parameters:

(1) Effective charging volume (L): 0.5L, 1L, 2L, 3.5L
(2) Charging area furnace tube size: φ102*300Lmm, φ133*350Lmm, φ159*400Lmm, φ219*400Lmm
(3) Heating zone length: 440mm, 500mm, 600mm
(4) Voltage: 220/380V
(5) Power: 4-10KW
(6) Maximum temperature: 1200℃
(7) Common temperature: 1150℃
(8) Furnace tube material: 310S/quartz tube
(9) Temperature control accuracy: ±1℃
(10) Thermocouple: K type
(11) Furnace atmosphere: N2, inert gas, etc.
(12) Heating time: ≤90min



Industry Applications and Advantages:
This tube furnace is a choice for laboratory dynamic sintering applications. The split-type design of the furnace body facilitates the replacement of furnace tubes and is energy-saving and environmentally friendly.



Production Workshop:
Precise Fas Flow Control 310s Quartz Tube Furnace High Temperature Vacuum Seal Rotating Stage 1



Related Products:
Precise Fas Flow Control 310s Quartz Tube Furnace High Temperature Vacuum Seal Rotating Stage 2

Customer Visits:
Precise Fas Flow Control 310s Quartz Tube Furnace High Temperature Vacuum Seal Rotating Stage 3

Offline Exhibitions:
Precise Fas Flow Control 310s Quartz Tube Furnace High Temperature Vacuum Seal Rotating Stage 4

Company Introduction:
Precise Fas Flow Control 310s Quartz Tube Furnace High Temperature Vacuum Seal Rotating Stage 5



FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
