Rapid Temperature Rise And Fall Split Tube Furnace Compact Structure Low Pollution

Rapid Temperature Rise And Fall Split Tube Furnace Compact Structure Low Pollution

MOQ: 1
Price: 5,000-10,000 USD/unit
Standard Packaging: Export Packing
Delivery Period: 30 DAYS
Payment Method: L/C,T/T
Supply Capacity: 10 PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
Opda
Certification
CE,UL
Model Number
High Temperature Tube Furnace
Heating Time:
≤90min
Heating Zone Length:
440mm, 500mm, 600mm
Effective Charging Volume:
0.5L, 1L, 2L, 3.5L
Thermocouple:
K Type
Common Temperature:
1150℃
Maximum Temperature:
1200℃
Highlight:

split tube furnace compact

,

split tube furnace low pollution

,

horizontal tubular furnace 600mm

Product Description

Rapid Temperature Rise and Fall High Temperature Tube Furnace Compact Structure Low Pollution



Brief Description:
Supports personalized design according to customer's special needs, and can customize parameters such as furnace tube size, number of heating temperature zones, temperature range, gas control method, etc. Provide customized solutions such as non-standard vacuum interface and special sample carrier. Provide one-stop service from solution design, production and manufacturing to installation and commissioning to meet the special process requirements of high-end fields such as aerospace, new energy, and biomedicine.

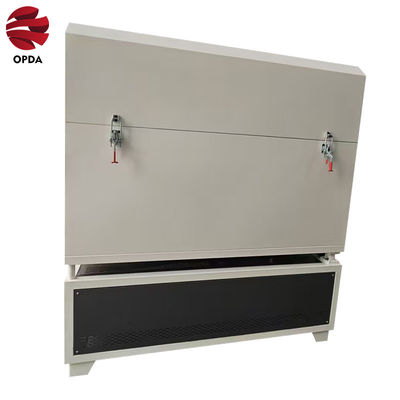

Product Image:

Rapid Temperature Rise And Fall Split Tube Furnace Compact Structure Low Pollution 0



Product Parameters:

(1) Effective charging volume (L): 0.5L, 1L, 2L, 3.5L
(2) Charging area furnace tube size: φ102*300Lmm, φ133*350Lmm, φ159*400Lmm, φ219*400Lmm
(3) Heating zone length: 440mm, 500mm, 600mm
(4) Voltage: 220/380V
(5) Power: 4-10KW
(6) Maximum temperature: 1200℃
(7) Common temperature: 1150℃
(8) Furnace tube material: 310S/quartz tube
(9) Temperature control accuracy: ±1℃
(10) Thermocouple: K type
(11) Furnace atmosphere: N2, inert gas, etc.
(12) Heating time: ≤90min



Industry Applications and Advantages:
This tube furnace is a choice for laboratory dynamic sintering applications. The split-type design of the furnace body facilitates the replacement of furnace tubes and is energy-saving and environmentally friendly.



Production Workshop:
Rapid Temperature Rise And Fall Split Tube Furnace Compact Structure Low Pollution 1



Related Products:
Rapid Temperature Rise And Fall Split Tube Furnace Compact Structure Low Pollution 2

Customer Visits:
Rapid Temperature Rise And Fall Split Tube Furnace Compact Structure Low Pollution 3

Offline Exhibitions:
Rapid Temperature Rise And Fall Split Tube Furnace Compact Structure Low Pollution 4

Company Introduction:
Rapid Temperature Rise And Fall Split Tube Furnace Compact Structure Low Pollution 5



FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
