Anti Backflow High Temperature Tube Furnace Tilted Tubular Structure Microwave Assisted Heating

Anti Backflow High Temperature Tube Furnace Tilted Tubular Structure Microwave Assisted Heating

MOQ: 1
Price: 5,000-10,000 USD/unit
Standard Packaging: Export Packing
Delivery Period: 30 DAYS
Payment Method: L/C,T/T
Supply Capacity: 10 PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
Opda
Certification
CE,UL
Model Number
High Temperature Tube Furnace
Charging Area Furnace Tube Size:
φ102*300Lmm, φ133*350Lmm, φ159*400Lmm, φ219*400Lmm
Voltage:
220/380V
Maximum Temperature:
1200℃
Thermocouple:
K Type
Furnace Tube Material:
310S/quartz Tube
Heating Time:
≤90min
Highlight:

anti backflow high temperature tube furnace

,

high temperature tube furnace 1200℃

,

K Thermocouple tube furnace

Product Description

Anti Backflow High Temperature Tube Furnace Tilted Tubular Structure Microwave Assisted Heating



Brief Description:
Innovative integration of microwave heating technology and traditional resistance heating, the heating rate can reach 50℃/min, greatly shortening the heating time. Non-contact heating method avoids direct contact between the sample and the heating element to prevent contamination. Equipped with a rotating stage to ensure that the material is heated evenly 360°. Suitable for special processes such as rapid sintering and microwave synthesis, especially for new material research and development scenarios with extremely high requirements for heating speed and uniformity.

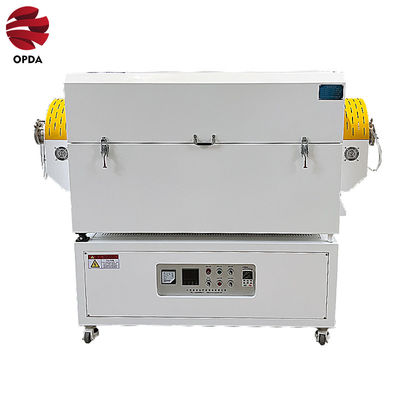

Product Image:

Anti Backflow High Temperature Tube Furnace Tilted Tubular Structure Microwave Assisted Heating 0



Product Parameters:

(1) Effective charging volume (L): 0.5L, 1L, 2L, 3.5L
(2) Charging area furnace tube size: φ102*300Lmm, φ133*350Lmm, φ159*400Lmm, φ219*400Lmm
(3) Heating zone length: 440mm, 500mm, 600mm
(4) Voltage: 220/380V
(5) Power: 4-10KW
(6) Maximum temperature: 1200℃
(7) Common temperature: 1150℃
(8) Furnace tube material: 310S/quartz tube
(9) Temperature control accuracy: ±1℃
(10) Thermocouple: K type
(11) Furnace atmosphere: N2, inert gas, etc.
(12) Heating time: ≤90min



Industry Applications and Advantages:
This tube furnace is a choice for laboratory dynamic sintering applications. The split-type design of the furnace body facilitates the replacement of furnace tubes and is energy-saving and environmentally friendly.



Production Workshop:
Anti Backflow High Temperature Tube Furnace Tilted Tubular Structure Microwave Assisted Heating 1



Related Products:
Anti Backflow High Temperature Tube Furnace Tilted Tubular Structure Microwave Assisted Heating 2

Customer Visits:
Anti Backflow High Temperature Tube Furnace Tilted Tubular Structure Microwave Assisted Heating 3

Offline Exhibitions:
Anti Backflow High Temperature Tube Furnace Tilted Tubular Structure Microwave Assisted Heating 4

Company Introduction:
Anti Backflow High Temperature Tube Furnace Tilted Tubular Structure Microwave Assisted Heating 5



FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
