Rapid Cooling Horizontal Vacuum Furnace Low Pollution High Purity Material Processing

Rapid Cooling High Vacuum Furnace Low Pollution High Purity Material Processing

Brief Description:
The vacuum furnace stands out in the material processing industry with its unique low-oxygen atmosphere processing environment. It adopts an advanced automatic control system, and the whole process from vacuuming, heating, insulation to cooling can be operated with one button, which greatly reduces the error of manual intervention. At the same time, the modular design enables it to flexibly configure functional modules according to production needs. Whether it is a scientific research experiment in a small laboratory or a mass production in a large factory, the vacuum furnace can create significant economic benefits and production value for users with its high efficiency, energy saving, safety and reliability.

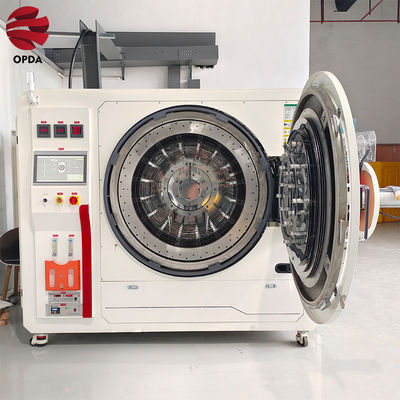

Product Image:

Product Parameters:

(1) Equipment type: horizontal structure
(2) Door opening method: front door for taking and unloading
(3) Heating method: molybdenum strip
(4) Total power: 40KW (subject to actual power)
(5) Working size: 300X200X200mm (length x width x height)
(6) Number of temperature zones: 1 temperature zone
(7) Maximum temperature: 1500℃
(8) Rated temperature: 1400℃
(9) Ultimate vacuum: 5X10-4Pa (empty furnace, purified)
(10) Temperature control accuracy: ±1℃
(11) Temperature control instrument: Fuji program controller
(12) Temperature control sensor: tungsten rhenium thermocouple
(13) Protective atmosphere: argon or high-purity nitrogen

Industry Applications and Advantages:
This furnace combines vacuum/atmosphere and high-temperature sintering. It is a high vacuum brazing sintering furnace specially developed for aluminum alloys, copper alloys, stainless steel, composite materials, and superhard material products; the equipment has ultra-high temperature field uniformity, precise control accuracy, and reasonable structure and control system design can make production safer and more efficient, save manpower and process costs, and improve production efficiency

Production Workshop:

Related Products:


Customer Visits:


Offline Exhibitions:


Company Introduction:

FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
