Complex Shape Vacuum Atmosphere Furnace Precision Heat Treatment Brazing Gas Pressure Sintering Furnace

Complex Shape Vacuum Atmosphere Furnace Precision Heat Treatment Brazing Gas Pressure Sintering Furnace

MOQ: 1
Price: 5,000-10,000 USD/unit
Standard Packaging: Export Packing
Delivery Period: 30 DAYS
Payment Method: L/C,T/T
Supply Capacity: 10 PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
Opda
Certification
CE,UL
Model Number
Vacuum furnace
Product Name:
Gas Pressure Sintering Furnace
Heating Rate:
10℃-50℃/min (below 1600℃)
Maxmum Temperature:
2000℃
Chamber Material:
Stainless Steel
Max Power:
Customized
Warrany:
1year
Highlight:

Complex Shape Vacuum Atmosphere Furnace

,

Complex vacuum heat treat furnace

,

Brazing Gas Pressure Sintering Furnace

Product Description

Complex Shape Adaptability Vacuum Atmosphere Furnace Precision Heat Treatment Vacuum Brazing



Brief Description:
The vacuum furnace is a high-end equipment that integrates vacuum technology, thermal technology and automatic control technology. By building a nearly perfect vacuum environment, it provides a pure reaction space for material processing, effectively avoiding the infiltration of impurity elements and the degradation of material properties. The equipment is equipped with a rapid cooling system, which can achieve rapid quenching of materials and greatly improve production efficiency. In the electronic semiconductor industry, vacuum furnaces are used for processes such as wafer annealing and metallization coating, which play a decisive role in ensuring chip performance and yield.

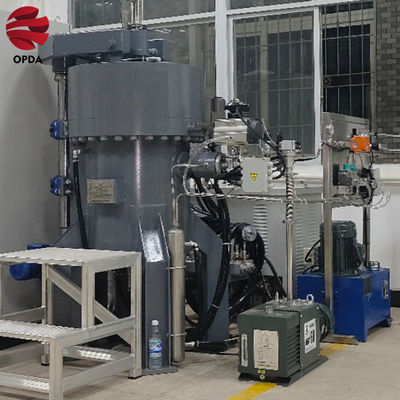

Product Image:

Complex Shape Vacuum Atmosphere Furnace Precision Heat Treatment Brazing Gas Pressure Sintering Furnace 0



Product Parameters:

(1) Product name: Gas pressure sintering furnace
(2) Product model: GPS-300/500
(3) Maximum temperature: 2000℃
(4) Working temperature: 1900℃
(5) Heating rate: Recommended heating rate (for reference only) 10℃-50℃/min (below 1600℃); 8℃-15℃/min (1600℃ ~ 1800℃); 5℃-10℃/min (below 2000℃)
(6) Effective crucible size: Φ300*500mm (diameter*height)
(7) Heating (mode) element: Isostatic graphite heating element
(8) Furnace shell structure: Double-layer water-cooled shell structure
(9) Insulation material: Made of isostatic graphite and graphite soft felt
(10) Temperature control system (control cabinet): PID automatic adjustment, self-tuning function, and can compile 50-stage temperature rise and fall programs (PLC+touch screen), electric control cabinet, programmable controller selection (Mitsubishi or Siemens), 15 inch touch screen dynamic simulation display device
(10) Temperature measurement and control method: tungsten-rhenium thermocouple (protected by tungsten sheath)
(12) Temperature control accuracy: ±2.0℃



Industry Applications and Advantages:
It is suitable for sintering materials such as silicon nitride ceramic balls, ceramic tools, and phosphor materials in high-pressure nitrogen or argon atmospheres, which is conducive to increasing the sintering density of materials and improving the mechanical properties of materials.



Production Workshop:
Complex Shape Vacuum Atmosphere Furnace Precision Heat Treatment Brazing Gas Pressure Sintering Furnace 1



Related Products:
Complex Shape Vacuum Atmosphere Furnace Precision Heat Treatment Brazing Gas Pressure Sintering Furnace 2

Customer Visits:
Complex Shape Vacuum Atmosphere Furnace Precision Heat Treatment Brazing Gas Pressure Sintering Furnace 3

Offline Exhibitions:
Complex Shape Vacuum Atmosphere Furnace Precision Heat Treatment Brazing Gas Pressure Sintering Furnace 4

Company Introduction:
Complex Shape Vacuum Atmosphere Furnace Precision Heat Treatment Brazing Gas Pressure Sintering Furnace 5



FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
