Explosion Proof Vacuum Sintering Furnace Burnout Cycle Over Temperature Protection Gas Purification

Explosion Proof Design Vacuum Furnace Burnout Cycle Over Temperature Protection Gas Purification

Brief Description:
With the advent of the Industrial 4.0 era, vacuum furnaces are also developing in the direction of intelligence and integration. It combines Internet of Things technology with traditional heat treatment processes to achieve remote diagnosis, fault warning and process optimization of equipment. The environmentally friendly and pollution-free characteristics of the equipment are in line with the development trend of green manufacturing today, and no harmful gases and waste residues are generated during the treatment process. In the production of new energy vehicle battery materials, vacuum furnaces are used for high-temperature sintering of precursor materials, helping the new energy industry to move towards higher performance and lower costs.

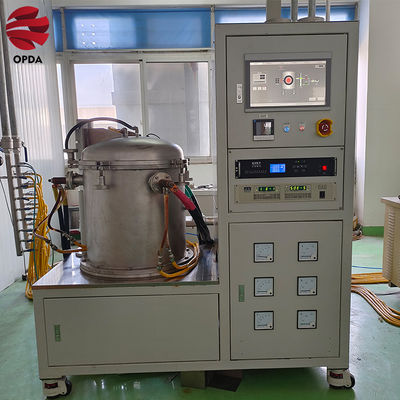

Product Image:

Product Parameters:

(1) Equipment form: single-chamber vertical, molybdenum strip resistance heating
(2) Heating power: 280KW (3-zone heating, one main heating + top and bottom auxiliary heating)
(3) Rated load: 100KG
(4) Working size: ∅400*500 (diameter*height)
(5) Maximum temperature: 2200℃
(6) Temperature control method: (room temperature~1800℃ can be fully tungsten-rhenium thermocouple, 1800℃~2200℃ automatic switching infrared thermometer)
(7) Ultimate vacuum: 6.67×10-4Pa (empty furnace, cold state, purified)
(8) Working vacuum: 8.0×10-3Pa (no load, hot state)
(9) Heating rate: 1-20℃/min (recommended heating rate 3-10℃/min)
(10) Temperature control accuracy: ±1℃
(11) Temperature uniformity: ≤±5℃
(12) Pressure rise rate: ≤1Pa/h (no load, cold state, purified)
(13) Cooling method: double-layer water-cooled furnace shell

Industry Applications and Advantages:
Application:
High vacuum annealing furnace is used for vacuum sintering in powder metallurgy, ceramic metallization, transparent ceramics, silicon carbide semiconductors and other industries, including vacuum sintering, tempering and annealing of metals such as copper, tungsten, titanium alloys and alloy materials composed of refractory metals.

Features:
(1) The integrated touch screen and self-developed program control are more accurate than buttons, manual valves and other controls, and each process is more precise to ensure the stability of product quality.
(2) The inner tank adopts 304 full-welded inner tank, and the pressure rise rate index is tested by helium mass spectrometer vacuum leak detector. The digital display is sensitive and can ensure the authenticity of the data. The pressure rise rate index is better than the minimum value of the national standard. The double-layer water-cooled jacket structure is not easy to produce scale. The furnace is strictly polished and the finish is better than Δ6. Reasonable reinforcement equipment can effectively ensure the service life of the furnace; greatly reduce the maintenance cost of the equipment.
(3) The insulation material is made of tungsten-molybdenum stainless steel. The grid-type reasonable design structure can not only ensure the insulation performance of the entire insulation layer, but also improve the uniformity of the temperature zone, and also allow it to cool down faster during the cooling process to achieve maximum production efficiency.
(4) The equipment adopts a modular assembly structure, and each system is integrated inside the equipment. It has a beautiful appearance, easy operation, easy maintenance, and low maintenance cost.
(5) The equipment is equipped with a water cooling device and a reasonable structural design, which can ensure the safety sealing performance and service life of the equipment, and can also take into account the substantial improvement of product production efficiency.
