MOQ: | 1 |
Price: | 5,000-10,000 USD/unit |
Standard Packaging: | Export Packing |
Delivery Period: | 30 DAYS |
Payment Method: | L/C,T/T |
Supply Capacity: | 10 PCS/MONTH |
PLC Control Vacuum Furnace Brazing Process Remote Monitoring Safety Interlock
Brief Description:
For companies pursuing high-quality material processing, vacuum furnaces are undoubtedly the best choice. It not only has the core advantages of anti-oxidation and no decarburization, but also has excellent temperature uniformity and rapid heating ability, which can heat the material to the target temperature in a short time and keep it stable. In the field of medical device manufacturing, vacuum furnaces are used for heat treatment of medical materials such as stainless steel and titanium alloys to ensure that the products meet strict hygiene standards and biocompatibility requirements, and protect the health and safety of patients.

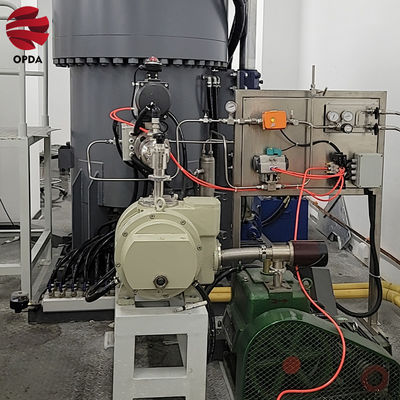

Product Image:
Product Parameters:
(1) Product name: Gas pressure sintering furnace
(2) Product model: GPS-300/500
(3) Maximum temperature: 2000℃
(4) Working temperature: 1900℃
(5) Heating rate: Recommended heating rate (for reference only) 10℃-50℃/min (below 1600℃); 8℃-15℃/min (1600℃ ~ 1800℃); 5℃-10℃/min (below 2000℃)
(6) Effective crucible size: Φ300*500mm (diameter*height)
(7) Heating (mode) element: Isostatic graphite heating element
(8) Furnace shell structure: Double-layer water-cooled shell structure
(9) Insulation material: Made of isostatic graphite and graphite soft felt
(10) Temperature control system (control cabinet): PID automatic adjustment, self-tuning function, and can compile 50-stage temperature rise and fall programs (PLC+touch screen), electric control cabinet, programmable controller selection (Mitsubishi or Siemens), 15 inch touch screen dynamic simulation display device
(10) Temperature measurement and control method: tungsten-rhenium thermocouple (protected by tungsten sheath)
(12) Temperature control accuracy: ±2.0℃
Industry Applications and Advantages:
It is suitable for sintering materials such as silicon nitride ceramic balls, ceramic tools, and phosphor materials in high-pressure nitrogen or argon atmospheres, which is conducive to increasing the sintering density of materials and improving the mechanical properties of materials.
Production Workshop:
Related Products:
Customer Visits:
Offline Exhibitions:
Company Introduction:
FAQ:
Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;
Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.
Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.
Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at 1set for machine. Pls contact us for details we will try to meet your requirement.
Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.
Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
