Brief Description:
The powder sintering kiln has energy saving and high efficiency as its core advantage, which is of great significance in the current situation of increasingly tight energy. It adopts efficient heating elements and optimized kiln structure to greatly improve thermal efficiency and reduce energy consumption. The unique sealing design effectively reduces heat loss, and with advanced insulation materials, the kiln can still maintain good thermal stability during long-term operation. The automatic control and intelligent monitoring system can monitor the operation status of the kiln in real time, automatically adjust parameters, further improve energy utilization, and save a lot of production costs for enterprises while ensuring product quality.

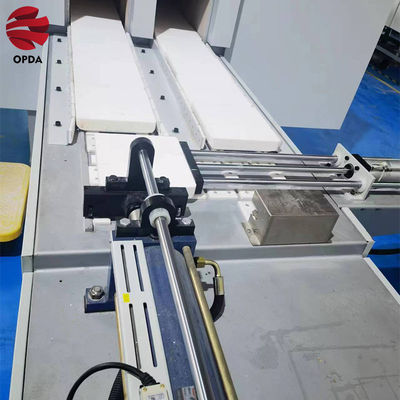

Product Image:


Product Parameters:
(1) Effective size of furnace: 24820X750X230mm (LXWXH)
(2) Design temperature: 1150℃
(3) Common temperature: 1100℃
(4) Number of temperature control groups: 16 heating temperature zones are set in the length direction of the furnace body, the first 5 temperature zones are middle temperature control, the last 11 temperature zones are independent temperature control of the upper and lower temperature zones, and temperature measuring holes are reserved in the middle. A total of 27 temperature control groups (6 zones and 7 groups in the heating section, 10 zones and 20 groups in the constant temperature section)
(5) Temperature control accuracy: ±1℃
(6) Effective cross-section temperature difference of constant temperature zone ±5℃ (subject to the measurement of temperature measuring block)
(7) Temperature control method: SCR phase shift voltage regulation, intelligent instrument temperature control
(8) Heating method: spiral resistance wire rod and silicon carbon rod horizontal heating up and down, of which the first 5 temperature zones are heated by resistance wire rod, and the last 11 temperature zones are heated by silicon carbon rod
(9) Push plate size: 340X340X35
(10) Push plate material: 90 corundum mullite
(11) Operating speed range: 300~2000mm/h continuously adjustable
(12) Common operating speed: 680mm/h
(13) Furnace external circulation: adopts fully automatic hydraulic push plate circulation system; circulation speed is continuously adjustable
(14) Installed power: 240KW, insulation power is about 130KW
(15) Furnace outer surface temperature rise: no more than 50℃
(16) Equipment dimensions: 28×3.2×1.9 meters (excluding the control cabinet placement and loading and unloading operation space)

Industry Applications and Advantages:
This series of push plate type resistance furnace is mainly suitable for sintering of tri-color phosphors, ceramic metallization, etc. under reducing atmosphere.
