MOQ: | 1 |
Price: | Negotiable |
Standard Packaging: | Export Packing |
Delivery Period: | 30 DAYS |
Payment Method: | L/C,T/T |
Supply Capacity: | 10 PCS/MONTH |
Indirect Heating Powder Metallurgy Furnace Even Temperature Easy to Use
Brief Description:
This powder sintering kiln supports both continuous production and intermittent operation modes, and can flexibly adapt to different production needs. The continuous production mode is suitable for large-scale, standardized production scenarios, and can achieve efficient and stable batch production, effectively improving production efficiency; the intermittent operation mode is suitable for small batch, multi-variety product research and development and production, which is convenient for rapid adjustment of process parameters to meet diverse production requirements. At the same time, its adjustable atmosphere function can accurately control the gas composition and pressure in the kiln according to the material characteristics, creating the best environmental conditions for powder sintering and improving product performance.

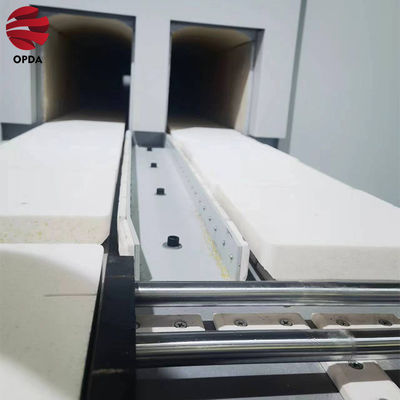

Product Image:
Product Parameters:
(1) Effective size of furnace: 24820X750X230mm (LXWXH)
(2) Design temperature: 1150℃
(3) Common temperature: 1100℃
(4) Number of temperature control groups: 16 heating temperature zones are set in the length direction of the furnace body, the first 5 temperature zones are middle temperature control, the last 11 temperature zones are independent temperature control of the upper and lower temperature zones, and temperature measuring holes are reserved in the middle. A total of 27 temperature control groups (6 zones and 7 groups in the heating section, 10 zones and 20 groups in the constant temperature section)
(5) Temperature control accuracy: ±1℃
(6) Effective cross-section temperature difference of constant temperature zone ±5℃ (subject to the measurement of temperature measuring block)
(7) Temperature control method: SCR phase shift voltage regulation, intelligent instrument temperature control
(8) Heating method: spiral resistance wire rod and silicon carbon rod horizontal heating up and down, of which the first 5 temperature zones are heated by resistance wire rod, and the last 11 temperature zones are heated by silicon carbon rod
(9) Push plate size: 340X340X35
(10) Push plate material: 90 corundum mullite
(11) Operating speed range: 300~2000mm/h continuously adjustable
(12) Common operating speed: 680mm/h
(13) Furnace external circulation: adopts fully automatic hydraulic push plate circulation system; circulation speed is continuously adjustable
(14) Installed power: 240KW, insulation power is about 130KW
(15) Furnace outer surface temperature rise: no more than 50℃
(16) Equipment dimensions: 28×3.2×1.9 meters (excluding the control cabinet placement and loading and unloading operation space)
Industry Applications and Advantages:
This series of push plate type resistance furnace is mainly suitable for sintering of tri-color phosphors, ceramic metallization, etc. under reducing atmosphere.
Production Workshop:
Related Products:
Customer Visits:
Offline Exhibitions:
Company Introduction:
FAQ:
Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;
Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.
Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.
Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at 1set for machine. Pls contact us for details we will try to meet your requirement.
Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.
Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
