Automatic Control High Temperature Sintering Furnace Multi Zone Adjustable Feeding Speed

Automatic Control High Temperature Sintering Furnace Multi Zone Adjustable Feeding Speed

MOQ: 1
Price: Negotiable
Standard Packaging: Export Packing
Delivery Period: 30 DAYS
Payment Method: L/C,T/T
Supply Capacity: 10 PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
Aopuda
Certification
CE,UL
Model Number
Powder Metallurgy Furnace
Common Operating Speed:
680mm/h
Circulation System:
Fully Automatic Hydraulic Push Plate Type
Installed Power:
240KW
Insulation Power:
130KW
Temperature Rise Of Outer Surface Of Furnace Body:
No More Than 50℃
Equipment Dimensions:
28×3.2×1.9 Meters
Highlight:

Automatic High Temp Sintering Furnace

,

High Temperature Sintering Furnace 680mm/h

,

High Temperature Sintering Furnace 240KW

Product Description

Automatic Control Powder Metallurgy Furnace Multi Temperature Zone Control Adjustable Feeding Speed

Brief Description:
The powder sintering kiln is excellent in automation and intelligence. Through the automatic control system, the operator only needs to set the process parameters on the control interface, and the kiln can automatically complete a series of operation processes such as heating, insulation, and cooling, reducing manual intervention, labor intensity, and operating errors. The intelligent monitoring system collects kiln operation data in real time, and through data analysis and fault warning functions, it can detect potential problems in advance to ensure safe and stable operation of the equipment. In addition, the easy-to-operate human-computer interaction interface allows operators to quickly get started, and even novices can easily master equipment operation.

Product Image:

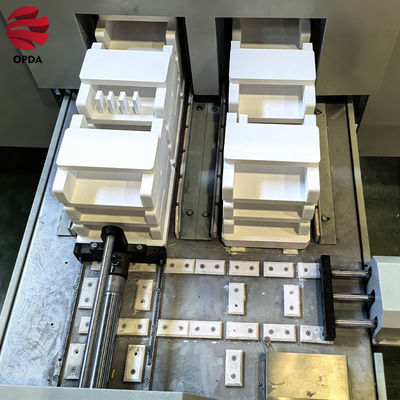

Automatic Control High Temperature Sintering Furnace Multi Zone Adjustable Feeding Speed 0

Product Parameters:
(1) Effective size of furnace: 24820X750X230mm (LXWXH)
(2) Design temperature: 1150℃
(3) Common temperature: 1100℃
(4) Number of temperature control groups: 16 heating temperature zones are set in the length direction of the furnace body, the first 5 temperature zones are middle temperature control, the last 11 temperature zones are independent temperature control of the upper and lower temperature zones, and temperature measuring holes are reserved in the middle. A total of 27 temperature control groups (6 zones and 7 groups in the heating section, 10 zones and 20 groups in the constant temperature section)
(5) Temperature control accuracy: ±1℃
(6) Effective cross-section temperature difference of constant temperature zone ±5℃ (subject to the measurement of temperature measuring block)
(7) Temperature control method: SCR phase shift voltage regulation, intelligent instrument temperature control
(8) Heating method: spiral resistance wire rod and silicon carbon rod horizontal heating up and down, of which the first 5 temperature zones are heated by resistance wire rod, and the last 11 temperature zones are heated by silicon carbon rod
(9) Push plate size: 340X340X35
(10) Push plate material: 90 corundum mullite
(11) Operating speed range: 300~2000mm/h continuously adjustable
(12) Common operating speed: 680mm/h
(13) Furnace external circulation: adopts fully automatic hydraulic push plate circulation system; circulation speed is continuously adjustable
(14) Installed power: 240KW, insulation power is about 130KW
(15) Furnace outer surface temperature rise: no more than 50℃
(16) Equipment dimensions: 28×3.2×1.9 meters (excluding the control cabinet placement and loading and unloading operation space)

Industry Applications and Advantages:
This series of push plate type resistance furnace is mainly suitable for sintering of tri-color phosphors, ceramic metallization, etc. under reducing atmosphere.

Production Workshop:
Automatic Control High Temperature Sintering Furnace Multi Zone Adjustable Feeding Speed 1


Related Products:
Automatic Control High Temperature Sintering Furnace Multi Zone Adjustable Feeding Speed 2
Customer Visits:
Automatic Control High Temperature Sintering Furnace Multi Zone Adjustable Feeding Speed 3
Offline Exhibitions:
Automatic Control High Temperature Sintering Furnace Multi Zone Adjustable Feeding Speed 4
Company Introduction:
Automatic Control High Temperature Sintering Furnace Multi Zone Adjustable Feeding Speed 5


FAQ:
Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;
Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.
Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.
Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.
Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.
Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
