Vertical Lifting Elevator Furnace Mechanism Precise Temperature Control High Temperature Treatment

Vertical Lifting Lift Furnace Mechanism Precise Temperature Control High Temperature Treatment

Brief Description:
As the core equipment in the field of industrial heat treatment, the lifting furnace adopts a unique vertical lifting structure design, which can achieve accurate positioning and efficient processing of materials. It has a precise temperature control system with a temperature control accuracy of up to ±1°C, and is equipped with a multi-temperature zone control function to meet the differentiated temperature requirements of different process stages. At the same time, the equipment has built-in vacuum and atmosphere protection devices, which can effectively prevent material oxidation. It is suitable for high-end processes such as metal material annealing and ceramic sintering, providing a solid guarantee for production quality.

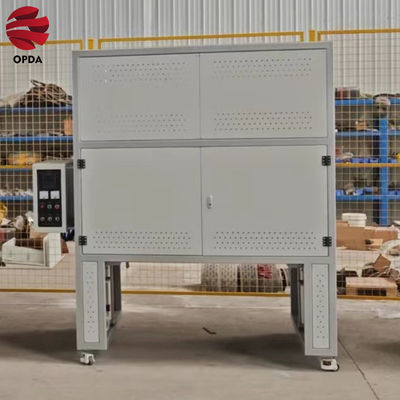

Product Image:

Product Parameters:

(1) Model: SJF1400-I, SJF1400-II
(2) Rated temperature: 1300℃
(3) Furnace tube length: 200X200X200mm, 300X300X300mm
(4) Maximum temperature: 1400℃
(5) Power: 7KW, 13KW
(6) Voltage: 220V, 380V
(7) Heating element: silicon carbon rod
(8) Thermocouple: S type
(9) Number of heating surfaces: 4-sided heating
(10) Temperature control method: intelligent 50-segment programmable control
(11) Heating rate: ≤20℃/min
(12) Recommended heating rate: ≤10℃/min

Industry Applications and advantages:
The furnace adopts a double-layer shell structure, and the double-layer furnace shell is equipped with an air cooling system, which can quickly increase and decrease the temperature. The furnace is made of alumina polycrystalline fiber material. The furnace adopts an automatic lifting stainless steel electric push rod. Press the up or down button, and the material will rise and fall freely with the lifting tray. When the lifting rod reaches the highest or lowest point, the travel switch will automatically cut off the power to the lifting rod, so that it will not rise or fall too much. After the material is lowered out of the furnace, the user can take it from the tray, so that the heat in the furnace cannot radiate to the human body, avoiding burns. There are four rods around the tray to support the material, and the material is very stable on the tray. It is an ideal product for colleges and universities, scientific research institutes, industrial and mining enterprises to do powder sintering, ceramic sintering, glass melting, high temperature experiments, and quality inspection. It is suitable for small-scale mass production, pilot and sintering of some products with high temperature field requirements.

Production Workshop:

Related Products:


Customer Visits:


Offline Exhibitions:


Company Introduction:

FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
