Refractory Material Lift Furnace Sealed Structure Low Noise Operation

Refractory Material Lift Furnace Sealed Structure Low Noise Operation

Brief Description:
This precision lifting furnace is designed for high-precision processes. The high-precision temperature measurement system provides real-time feedback on the temperature in the furnace. Combined with the rapid heating and cooling technology, it can reach the target temperature in a short time and achieve precise temperature control. Its compact volume design saves workshop space and meets the use needs of laboratories and small production workshops. Whether it is the quenching treatment of metal materials or the annealing process of special glass, this lifting furnace can help produce high-quality products with its excellent performance.

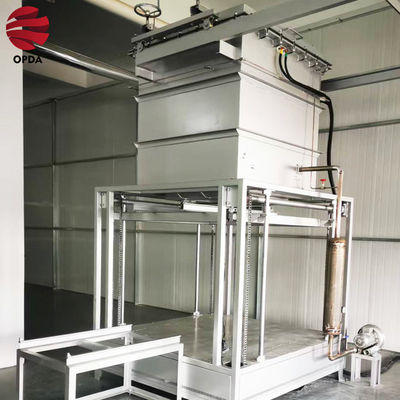

Product Image:

Product Parameters:

(1) Model: VSF1400-I, VSF1400-II
(2) Rated temperature: 1300℃
(3) Furnace tube length: 200X200X200mm. 300X300X300mm
(4) Maximum temperature: 1400℃
(5) Power: 7KW, 13KW
(6) Voltage: 220V, 380V
(7) Vacuum: ≤100Pa
(8) Heating element: silicon carbon rod
(9) Temperature control method: intelligent 50-segment programmable control
(10) Thermocouple: S type
(11) Number of heating surfaces: 4 heating surfaces

Industry Applications and advantages:
The furnace adopts a three-layer shell structure, the outer layer is a protective layer, the middle layer is an integrally welded seal, the alumina polycrystalline fiber furnace is installed on the inner layer, the furnace top and the lifting furnace door are sealed with high-temperature resistant O-rings, the bottom furnace door is equipped with a water cooling system, and the double-layer furnace shell is equipped with an air cooling system, which can quickly increase and decrease the temperature. The furnace can be heated in vacuum or in gases such as hydrogen, argon, nitrogen, oxygen, carbon monoxide, and ammonia decomposition gas.

Production Workshop:

Related Products:


Customer Visits:


Offline Exhibitions:


Company Introduction:

FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
