PRODUCTS DETAILS
Home > Products >
Customized Configuration Elevating Lift Furnace Data Recording Efficient Thermal Insulation

Customized Configuration Elevating Lift Furnace Data Recording Efficient Thermal Insulation

MOQ: 1
Price: 5,000-10,000 USD/unit
Standard Packaging: Export Packing
Delivery Period: 30 DAYS
Payment Method: L/C,T/T
Supply Capacity: 10 PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
Opda
Certification
CE,UL
Model Number
Lift furnace
Model:
VSF1700-I, VSF1700-II
Furnace Tube Length:
200X200X200mm, 300X200X200mm
Maximum Temperature:
1700℃
Thermocouple:
S Type
Heating Element:
Silicon Molybdenum Rod
Vacuum Degree:
≤100Pa
Highlight:

Configuration Lift Furnace

,

Elevating Lift Furnace

,

Customized Elevating Furnace

Product Description

Customized Configuration Lift Furnace Data Recording Efficient Thermal Insulation



Brief Description:
The lifting furnace with customized configuration advantage can adjust the parameters such as furnace size, temperature range, load-bearing capacity according to the special needs of different customers. Whether it is the heat treatment of large workpieces or the experimental research of tiny samples, suitable solutions can be found. At the same time, the equipment supports multiple linkage control to meet the needs of large-scale production. This high degree of flexibility makes it widely used in many industries such as machinery manufacturing, aerospace, etc.

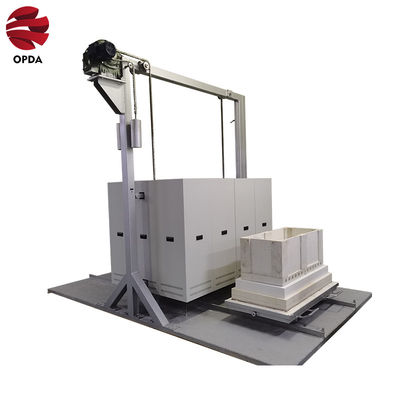

Product Image:

Customized Configuration Elevating Lift Furnace Data Recording Efficient Thermal Insulation 0



Product Parameters:

(1) Model: VSF1700-I, VSF1700-II
(2) Rated temperature: 1650℃
(3) Furnace tube length: 200X200X200mm, 300X200X200mm
(4) Maximum temperature: 1700℃
(5) Power: 7KW, 13KW
(6) Voltage: 220V, 380V
(7) Vacuum degree: ≤100Pa
(8) Heating element: silicon molybdenum rod
(9) Temperature control method: intelligent 50-segment programmable control
(10) Thermocouple: S type



Industry Applications and advantages:
The furnace adopts a three-layer shell structure, the outer layer is a protective layer, the middle layer is an integrally welded seal, the alumina polycrystalline fiber furnace is installed on the inner layer, the power regulator is used to control the current and can limit the current throughout the process, the furnace top and the lifting furnace door are sealed with high-temperature resistant O-rings, the bottom furnace door is equipped with a water cooling system, and the double-layer furnace shell is equipped with an air cooling system, which can quickly increase and decrease the temperature. The furnace can be heated in vacuum or in gases such as hydrogen, argon, nitrogen, oxygen, carbon monoxide, and ammonia decomposition gas.



Production Workshop:
Customized Configuration Elevating Lift Furnace Data Recording Efficient Thermal Insulation 1



Related Products:
Customized Configuration Elevating Lift Furnace Data Recording Efficient Thermal Insulation 2

Customer Visits:
Customized Configuration Elevating Lift Furnace Data Recording Efficient Thermal Insulation 3

Offline Exhibitions:
Customized Configuration Elevating Lift Furnace Data Recording Efficient Thermal Insulation 4

Company Introduction:
Customized Configuration Elevating Lift Furnace Data Recording Efficient Thermal Insulation 5



FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
