Multiple Atmosphere Options Lift Furnace 420mm/Min Accurate Temperature Measurement

Multiple Atmosphere Options Lift Furnace Environmental Protection Accurate Temperature Measurement

Brief Description:
The lifting furnace has made a breakthrough in efficient insulation technology, using new insulation materials to effectively reduce heat transfer and improve energy utilization. Combined with an energy-saving and efficient heating system, it can save more than 30% of energy consumption compared to traditional heat treatment equipment. Its low-noise operation characteristics create a comfortable working environment. In today's advocacy of green manufacturing, this lifting furnace has become the preferred equipment for many companies to transform and upgrade with its excellent energy-saving performance.

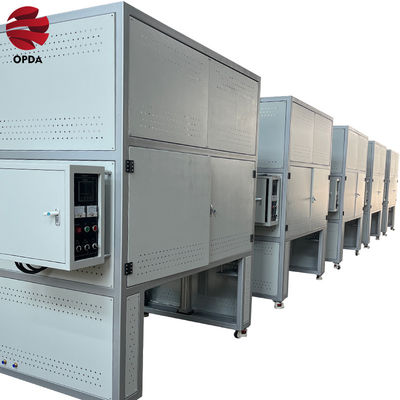

Product Image:

Product Parameters:

(1) Model: VSYF1700-I
(2) Rated temperature: 1650℃
(3) Furnace tube length: Φ250X250mm
(4) Maximum temperature: 1700℃
(5) Power: 10KW
(6) Voltage: 380V
(7) Heating element: silicon molybdenum rod
(8) Thermocouple: Type B
(9) Positive pressure: 0.2MPa
(10) Vacuum degree in cold state: 10Pa
(11) Screw reduction motor power: 750W
(12) Screw lifting rate: about 420mm/Min
(13) Temperature control method: intelligent 50-segment programmable control
(14) Rated temperature under vacuum: 1500℃, using molybdenum wire heating to 1650℃
(15) Heating rate: ≤20℃/min
(16) Recommended heating rate: ≤10℃/min

Industry Applications and advantages:
This vacuum atmosphere positive pressure lifting furnace adopts 304 stainless steel double-layer water-cooled shell, and the furnace chamber adopts 1800 type alumina polycrystalline fiber material imported from Japan, which can quickly increase and decrease temperature. The lifting of the tray base of the furnace adopts electric screw, which has a fast lifting rate and saves space. The furnace has the advantages of balanced temperature field, low surface temperature, fast heating and cooling rate, energy saving, etc. It is convenient to take materials, and there is no need to extend the crucible tongs into the furnace chamber. It is suitable for high-temperature material taking, high-temperature annealing, high-temperature vacuum sintering, melting glass, etc. The furnace can not only be used under vacuum, but also under a certain gas pressure.

Production Workshop:

Related Products:


Customer Visits:


Offline Exhibitions:


Company Introduction:

FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
