Rapid Lifting Elevator Furnace Box Vacuum Environment Atmosphere Protection

Rapid Lifting Lift Furnace Box Vacuum Environment Atmosphere Protection

Brief Description:
This advanced lifting furnace features modular design, allowing users to flexibly combine functional modules according to actual production needs. The equipment is equipped with an intelligent control system and supports programmable operation. Operators only need to set parameters such as the heating curve and insulation time in advance to achieve automatic operation. In addition, it has stable load-bearing performance and rapid lifting function, which greatly improves production efficiency. It is widely used in scientific research institutions, new material research and development, and other fields to help explore the limits of material performance.

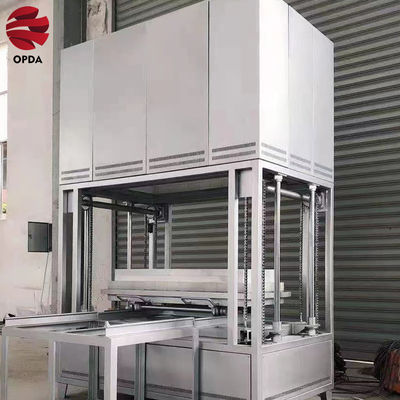

Product Image:

Product Parameters:

(1) Model: SJF1400-I, SJF1400-II
(2) Rated temperature: 1300℃
(3) Furnace tube length: 200X200X200mm, 300X300X300mm
(4) Maximum temperature: 1400℃
(5) Power: 7KW, 13KW
(6) Voltage: 220V, 380V
(7) Heating element: silicon carbon rod
(8) Thermocouple: S type
(9) Number of heating surfaces: 4-sided heating
(10) Temperature control method: intelligent 50-segment programmable control
(11) Heating rate: ≤20℃/min
(12) Recommended heating rate: ≤10℃/min

Industry Applications and advantages:
The furnace adopts a double-layer shell structure, and the double-layer furnace shell is equipped with an air cooling system, which can quickly increase and decrease the temperature. The furnace is made of alumina polycrystalline fiber material. The furnace adopts an automatic lifting stainless steel electric push rod. Press the up or down button, and the material will rise and fall freely with the lifting tray. When the lifting rod reaches the highest or lowest point, the travel switch will automatically cut off the power to the lifting rod, so that it will not rise or fall too much. After the material is lowered out of the furnace, the user can take it from the tray, so that the heat in the furnace cannot radiate to the human body, avoiding burns. There are four rods around the tray to support the material, and the material is very stable on the tray. It is an ideal product for colleges and universities, scientific research institutes, industrial and mining enterprises to do powder sintering, ceramic sintering, glass melting, high temperature experiments, and quality inspection. It is suitable for small-scale mass production, pilot and sintering of some products with high temperature field requirements.

Production Workshop:

Related Products:


Customer Visits:


Offline Exhibitions:


Company Introduction:

FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
