Rapid Cooling High Temperature Tubular Furnace Compatible Interface Deposition Process

Rapid Cooling Device High Temperature Tube Furnace Compatible Interface Deposition Process

Brief Description:
Designed for chemical vapor deposition process, equipped with high-precision gas mixing chamber and steam generator, it can accurately control the ratio and flow rate of multiple reaction gases. It adopts inclined tube structure to optimize gas diffusion path and improve film deposition uniformity. The maximum operating temperature is 1200℃, supporting program heating and constant temperature control, and is widely used in the preparation of nanomaterials such as graphene and carbon nanotubes, as well as the epitaxial growth process of semiconductor chips.

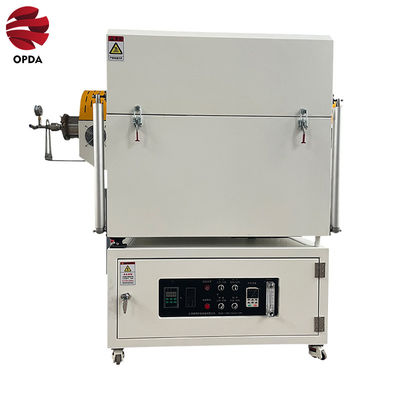

Product Image:

Product Parameters:

(1) Effective charging volume (L): 0.5L, 1L, 2L, 3.5L
(2) Charging area furnace tube size: φ102*300Lmm, φ133*350Lmm, φ159*400Lmm, φ219*400Lmm
(3) Heating zone length: 440mm, 500mm, 600mm
(4) Voltage: 220/380V
(5) Power: 4-10KW
(6) Maximum temperature: 1200℃
(7) Common temperature: 1150℃
(8) Furnace tube material: 310S/quartz tube
(9) Temperature control accuracy: ±1℃
(10) Thermocouple: K type
(11) Furnace atmosphere: N2, inert gas, etc.
(12) Heating time: ≤90min

Industry Applications and Advantages:
This tube furnace is a choice for laboratory dynamic sintering applications. The split-type design of the furnace body facilitates the replacement of furnace tubes and is energy-saving and environmentally friendly.
