Wound Or Coiled Rcf Paper Thermal Shock Resistance Automotive Insulation

Wound Or Coiled Rcf Paper Thermal Shock Resistance Automotive Insulation

MOQ: 1
Price: Negotiable
Standard Packaging: Export Packing
Delivery Period: 30 DAYS
Payment Method: L/C,T/T
Supply Capacity: 10 PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
Opda
Certification
CE,UL
Model Number
refractory ceramic fiber
Classification Temperature:
1260-1430℃
Length:
10000-60000mm
Width:
610,1220mm
Thickness:
1-6mm
Density:
190-220kg/m3
Application:
Electrical Heating Element And Instrument Insulation
Highlight:

Wound Rcf Paper

,

Coiled Rcf Paper

,

Automotive Insulation Rcf Paper

Product Description

Can be Wound or Coiled Refractory Ceramic Fiber Paper Thermal Shock Resistance Automotive Insulation



Brief Description:

Ceramic fiber paper is a high-performance thermal insulation material with inorganic ceramic fiber as the core raw material. It is made through dispersion, pulping, dehydration and other processes, and has both flexibility and high temperature resistance. Its fiber structure is fine and uniform, with high porosity, which can effectively block heat transfer. It also has low heat capacity, corrosion resistance and good sound insulation performance. The long-term use temperature of ceramic fiber paper can reach 1350°C, so it is often used as expansion joint filling, pipe wrapping or thermal shielding layer in high-temperature industries such as steel smelting and glass manufacturing. Compared with traditional thermal insulation materials, it is lighter, more convenient to construct, does not contain asbestos, is environmentally friendly and safe, and is one of the key materials for energy saving and consumption reduction in modern industry.



Product Image:

Wound Or Coiled Rcf Paper Thermal Shock Resistance Automotive Insulation 0



Product Parameters:

Ceramic Fiber Paper is made on high automation continuous production line which developed from traditional paper making.
Ceramic Fiber Paper is easy to be handled and cut. Its flexibility allows it to be wrapped or rolled, to fit most complex configurations.

Product Name Classification Temperature Working Temperature
ST Ceramic Fiber Paper 1260℃ 1000℃
HP Ceramic Fiber Paper 1260℃ 1100℃
HAZ Ceramic Fiber Paper 1400℃ 1200℃
HZ Ceramic Fiber Paper 1430℃ 1350℃



Length(mm) Width(mm) Thickness(mm) Density(kg/m3)
      190 200 220
60000 610,1220 1
30000 2
20000 3
12000 5
10000 6



Industry Applications and Advantages:

Characteristic:
(1) Low heat capacity, low thermal conductivity.
(2) Excellent thermal stability and thermal vibration resistance.
(3) Excellent flexibility.
(4) Good for re-processing .
(5) High MOR.

Typical Application:
(1) Industrial insulating, sealing and protecting materials.
(2) Electrical heating equipment insulation.
(3) Electrical heating element and instrument insulation.
(4) Insulating materials in Automotive.
(5) Insulating materials of household appliances.

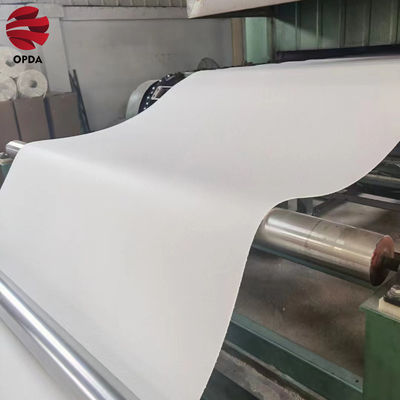

Production Workshop:
Wound Or Coiled Rcf Paper Thermal Shock Resistance Automotive Insulation 1



Related Products:
Wound Or Coiled Rcf Paper Thermal Shock Resistance Automotive Insulation 2

Customer Visits:
Wound Or Coiled Rcf Paper Thermal Shock Resistance Automotive Insulation 3

Offline Exhibitions:
Wound Or Coiled Rcf Paper Thermal Shock Resistance Automotive Insulation 4

Company Introduction:
Wound Or Coiled Rcf Paper Thermal Shock Resistance Automotive Insulation 5



FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
