Wind Erosion Resistance furnace Refractory Ceramic Fiber Board Thickness 5-50mm Rcf Fibre

Wind Erosion Resistance furnace Refractory Ceramic Fiber Board Thickness 5-50mm Rcf Fibre

MOQ: 1
Price: Negotiable
Standard Packaging: Export Packing
Delivery Period: 30 DAYS
Payment Method: L/C,T/T
Supply Capacity: 10 PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
Opda
Certification
CE,UL
Model Number
refractory ceramic fiber
Working Temperature:
1000-1350℃
Thickness:
5-50mm
Density:
250-400kg/m3
Heat Capacity:
Low
Thermal Conductivity:
Low
Application:
Refractory Lining For Industrial Furnace
Highlight:

Furnace Refractory Ceramic Fiber Board

,

Refractory Ceramic Fiber Board 1350℃

,

5-50mm Rcf Fibre

Product Description

Wind Erosion Resistance Refractory Ceramic Fiber Board Low Thermal Conductivity Thermal Shock Resistance



Brief Description:

Ceramic fiberboard is a rigid thermal insulation material made of ceramic fiber combined with inorganic binder, through high pressure molding and high temperature curing process, with excellent high temperature resistance, low thermal conductivity and mechanical impact resistance. Its unique fiber interlaced structure gives it high compressive strength while maintaining low volume density, so that it can provide excellent thermal insulation effect and withstand certain loads in high-temperature industrial equipment. Ceramic fiberboard can adjust its composition according to different application requirements, such as high aluminum type, zirconium type, etc., to meet extreme working conditions with higher temperatures. It is widely used in lining and thermal insulation layers of equipment such as steel smelting furnaces, glass kilns, and petrochemical heating furnaces. It can not only effectively reduce energy consumption, but also extend the service life of equipment. It is one of the key materials for energy-saving transformation of modern industry.

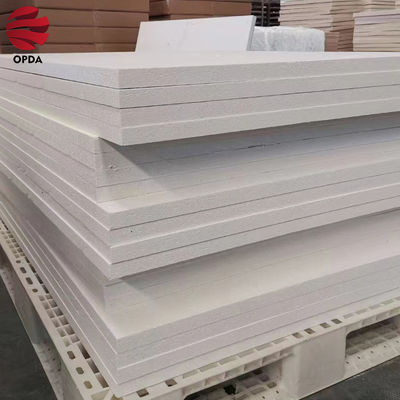

Product Image:

Wind Erosion Resistance furnace Refractory Ceramic Fiber Board Thickness 5-50mm Rcf Fibre 0



Product Parameters:

HYWOOL Ceramic Fiber Board is processed by vacuum forming.
HYWOOL Ceramic Fiber Board with good strength & anti-wind erosion performance.
Organic and inorganic board depends on the binder.

Product Name Classification Temperature Working Temperature
ST Ceramic Fiber Board 1260℃ 1000℃
HP Ceramic Fiber Board 1260℃ 1100℃
HAZ Ceramic Fiber Board 1400℃ 1200℃
HZ Ceramic Fiber Board 1430℃ 1350℃



Length(mm) Width(mm) Thickness(mm) Density(kg/m3)
      250 280 300 400
1200 1000 10-50
900 600 10-50
600 400 10-50
1000 500 5-50



Industry Applications and Advantages:

Characteristic:
(1) Low heat capacity, low thermal conductivity.
(2) Excellent thermal stability and thermal vibration resistance.
(3) High MOR.

Typical Application:
(1) Refractory lining for industrial furnace.
(2) Combustion chamber liners, boilers, and heaters.Hot face layer for high velocity or abrasive furnace circumstance.
(3) Heat& fire insulation and sound absorption in Aerospace.Shipbuilding Industry.



Production Workshop:
Wind Erosion Resistance furnace Refractory Ceramic Fiber Board Thickness 5-50mm Rcf Fibre 1



Related Products:
Wind Erosion Resistance furnace Refractory Ceramic Fiber Board Thickness 5-50mm Rcf Fibre 2

Customer Visits:
Wind Erosion Resistance furnace Refractory Ceramic Fiber Board Thickness 5-50mm Rcf Fibre 3

Offline Exhibitions:
Wind Erosion Resistance furnace Refractory Ceramic Fiber Board Thickness 5-50mm Rcf Fibre 4

Company Introduction:
Wind Erosion Resistance furnace Refractory Ceramic Fiber Board Thickness 5-50mm Rcf Fibre 5



FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
