Aluminum Silicate Needle Punched Blanket Refractory Ceramic Fiber Blanket No Adhesive Low Heat Capacity
Brief Description:
Ceramic fiber blanket is a high-performance fire-resistant insulation material. It is made of ceramic fiber through high-temperature melting, fiberization and needle punching. It has excellent flexibility and mechanical strength. Compared with traditional insulation materials, it has lower density, better insulation effect, and is easy to cut and install. It is suitable for insulation of industrial equipment of various complex shapes. Ceramic fiber blanket can be divided into standard type, high-purity type, high-aluminum type, etc. according to temperature grade, which can meet the use requirements in different high-temperature environments, such as steel smelting, glass kiln, heat treatment furnace, etc. In addition, it also has excellent sound absorption and noise reduction performance, which can be used for noise control of high-temperature equipment. At the same time, it does not contain asbestos and meets environmental protection requirements. It is one of the important materials for energy saving and consumption reduction in modern industry.

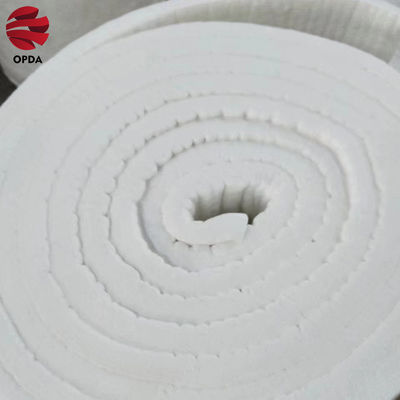

Product Image:
Product Parameters:
Alumina-Silicate needled blanket (Ceramic Fiber Blanket) processed by hot molten spinning. The blanket does not contain any binders.
Ceramic Fiber Blankets with different density and thickness provide the wide range of materials for selection to obtain the best insulation and energy saving benefits.
Product Name | Classification Temperature | Working Temperature |
ST Ceramic Fiber Blanket | 1260℃ | 1000℃ |
HP Ceramic Fiber Blanket | 1260℃ | 1100℃ |
HAZ Ceramic Fiber Blanket | 1400℃ | 1200℃ |
HZ Ceramic Fiber Blanket | 1430℃ | 1350℃ |
Length(mm) | Width(mm) | Thickness(mm) | Density(kg/m3) | ||
190 | 200 | 220 | |||
60000 | 610,1220 | 1 | — | √ | — |
30000 | 2 | √ | √ | √ | |
20000 | 3 | √ | √ | √ | |
12000 | 5 | √ | √ | √ | |
10000 | 6 | √ | √ | √ |
Industry Applications and Advantages:
Characteristic:
(1) Low heat capacity and low thermal conductivity.
(2) Excellent thermal vibration resistance and thermal stability.
(3) Excellent Tensile Strength.
(4) Excellent heat& fire insulation and sound absorption.
Typical Application:
(1) Industrial kiln, heating element & duct insulation.
(2) Boiler, steam turbine & nuclear power generator insulation.
(3) High-temperature equipment and heating equipment insulation in Chemical Industry.
