Vacuum Forming Process Refractory Ceramic Fiber Board Good Strength Refractory Lining of Industrial Furnaces

Vacuum Forming Process Refractory Ceramic Fiber Board Good Strength Refractory Lining of Industrial Furnaces

MOQ: 1
Price: Negotiable
Standard Packaging: Export Packing
Delivery Period: 30 DAYS
Payment Method: L/C,T/T
Supply Capacity: 10 PCS/MONTH
Detail Information
Place of Origin
China
Brand Name
Opda
Certification
CE,UL
Model Number
refractory ceramic fiber
Classification Temperature:
1260-1430℃
Working Temperature:
1000-1350℃
Length:
600-1200mm
Width:
400-1000mm
Thickness:
5-50mm
Density:
250-400kg/m3
Highlight:

industrial refractory lining

,

industrial refractory ceramic fiber board

,

furnaces refractory lining

Product Description

Vacuum Forming Process Refractory Ceramic Fiber Board Good Strength Refractory Lining of Industrial Furnaces



Brief Description:

Ceramic fiberboard is a high-performance refractory insulation material made of ceramic fiber as the main raw material through wet vacuum forming or dry pressing process. It is based on high-purity alumina and silica, and forms a dense and uniform plate structure through a special process, with excellent mechanical strength and high temperature resistance. Ceramic fiberboard has an extremely low thermal conductivity, and the long-term use temperature can reach 1000°C~1600°C. It is suitable for industrial furnace linings, high-temperature equipment insulation, thermal instrument protection and other fields. Compared with traditional refractory bricks, it is lighter and has lower heat capacity, which can significantly reduce heat loss and improve energy efficiency. In addition, ceramic fiberboard also has good thermal shock resistance and chemical stability, can resist acid and alkali corrosion, and is widely used in high-temperature environments in metallurgy, electric power, chemical industry and other industries.

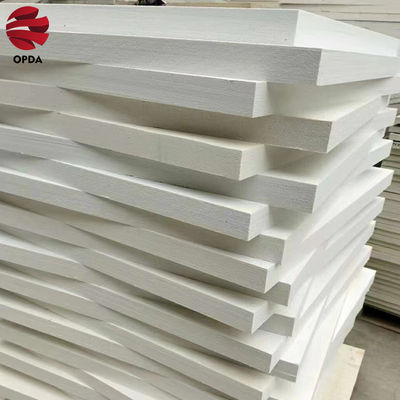

Product Image:

Vacuum Forming Process Refractory Ceramic Fiber Board Good Strength Refractory Lining of Industrial Furnaces 0



Product Parameters:

HYWOOL Ceramic Fiber Board is processed by vacuum forming.
HYWOOL Ceramic Fiber Board with good strength & anti-wind erosion performance.
Organic and inorganic board depends on the binder.

Product Name Classification Temperature Working Temperature
ST Ceramic Fiber Board 1260℃ 1000℃
HP Ceramic Fiber Board 1260℃ 1100℃
HAZ Ceramic Fiber Board 1400℃ 1200℃
HZ Ceramic Fiber Board 1430℃ 1350℃



Length(mm) Width(mm) Thickness(mm) Density(kg/m3)
      250 280 300 400
1200 1000 10-50
900 600 10-50
600 400 10-50
1000 500 5-50



Industry Applications and Advantages:

Characteristic:
(1) Low heat capacity, low thermal conductivity.
(2) Excellent thermal stability and thermal vibration resistance.
(3) High MOR.

Typical Application:
(1) Refractory lining for industrial furnace.
(2) Combustion chamber liners, boilers, and heaters.Hot face layer for high velocity or abrasive furnace circumstance.
(3) Heat& fire insulation and sound absorption in Aerospace.Shipbuilding Industry.



Production Workshop:
Vacuum Forming Process Refractory Ceramic Fiber Board Good Strength Refractory Lining of Industrial Furnaces 1



Related Products:
Vacuum Forming Process Refractory Ceramic Fiber Board Good Strength Refractory Lining of Industrial Furnaces 2

Customer Visits:
Vacuum Forming Process Refractory Ceramic Fiber Board Good Strength Refractory Lining of Industrial Furnaces 3

Offline Exhibitions:
Vacuum Forming Process Refractory Ceramic Fiber Board Good Strength Refractory Lining of Industrial Furnaces 4

Company Introduction:
Vacuum Forming Process Refractory Ceramic Fiber Board Good Strength Refractory Lining of Industrial Furnaces 5



FAQ:

Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;

Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.

Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.

Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at  1set for machine. Pls contact us for details we will try to meet your requirement.

Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.

Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
