Thermal Insulation Refractory Ceramic Fiber Module Easy and Quick Installation Lining of Industrial Furnaces
Brief Description:
Ceramic fiber module is a high-efficiency refractory insulation component made of high-quality ceramic fiber blanket through a special folding and compression process. It can be quickly installed on the inner wall of industrial furnaces through a prefabricated anchoring system. This modular design combines the excellent high temperature resistance and convenient construction characteristics of ceramic fiber, and the long-term use temperature can reach 900-1350℃. The unique folding structure inside the module enables it to expand evenly at high temperatures, forming a seamless integral lining, effectively preventing heat loss and improving thermal efficiency. Ceramic fiber modules have extremely low thermal conductivity and heat capacity, which can significantly reduce the heat storage loss of the furnace body, achieve rapid heating and precise temperature control.

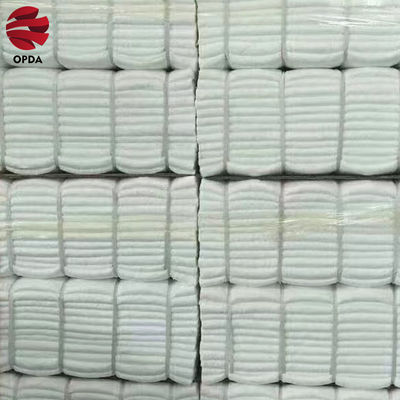

Product Image:
Product Parameters:
Ceramic Fiber Module is made by customized equipment.
The module with anchor is the standard module, without anchor is folded block.
Since the fiber module keeps a certain volume of compression when it is made. After the completion of installation, due to its own expansion, the furnace lining will be no gaps between each other, it improves the insulation performance of the furnace lining.
Product Name | Classification Temperature | Working Temperature |
COM Ceramic Fiber Module | 1140℃ | 900℃ |
ST Ceramic Fiber Module | 1260℃ | 1000℃ |
HP Ceramic Fiber Module | 1260℃ | 1100℃ |
HAZ Ceramic Fiber Module | 1400℃ | 1200℃ |
HZ Ceramic Fiber Module | 1430℃ | 1350℃ |
Length(mm) | Width(mm) | Thickness(mm) | Density(kg/m3) | ||
160 | 190 | 220 | |||
300 | 300 | 300 | √ | √ | √ |
600 | 300 | 300 | √ | √ | √ |
Industry Applications and Advantages:
Characteristic:
(1) Low heat capacity, low thermal conductivity.
(2) Excellent thermal stability and thermal vibration resistance.
(3) Excellent flexibility.
(4) Easy & fast to be installed. Long usage under safe conditions.
Typical Application:
(1) Furnace lines for various industrial furnace and heating equipment in metal.lurgy& hot mill. such as ladle cover heat treatment oven and curing oven.
(2) Furnace lining in other industries.
