MOQ: | 1 |
Price: | Negotiable |
Standard Packaging: | Export Packing |
Delivery Period: | 30 DAYS |
Payment Method: | L/C,T/T |
Supply Capacity: | 10 PCS/MONTH |
Excellent Flexibility Refractory Ceramic Fiber Module Chemical Stability Lining of Curing Furnaces
Brief Description:
Ceramic fiber modules are a revolutionary high-temperature insulation system that perfectly combines the excellent performance of ceramic fibers with the advantages of modular installation. This prefabricated refractory unit uses a special folding process and is combined with heat-resistant steel anchors to form a complete furnace lining system that can be put into use immediately after installation. The multi-layer fiber structure inside the module forms an efficient thermal insulation barrier, and the back temperature can be kept within a safe range when the hot surface temperature can reach 1430°C. The ceramic fiber module system has excellent engineering adaptability and can be designed into various specifications according to the furnace type to achieve precise installation of complex curved parts.

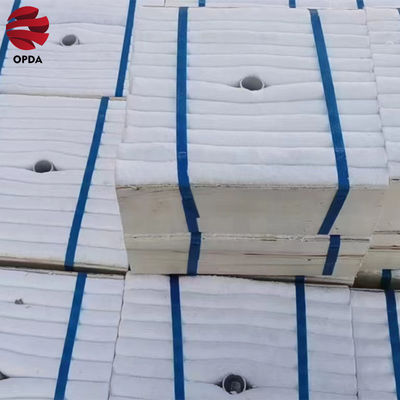

Product Image:
Product Parameters:
Ceramic Fiber Module is made by customized equipment.
The module with anchor is the standard module, without anchor is folded block.
Since the fiber module keeps a certain volume of compression when it is made. After the completion of installation, due to its own expansion, the furnace lining will be no gaps between each other, it improves the insulation performance of the furnace lining.
Product Name | Classification Temperature | Working Temperature |
COM Ceramic Fiber Module | 1140℃ | 900℃ |
ST Ceramic Fiber Module | 1260℃ | 1000℃ |
HP Ceramic Fiber Module | 1260℃ | 1100℃ |
HAZ Ceramic Fiber Module | 1400℃ | 1200℃ |
HZ Ceramic Fiber Module | 1430℃ | 1350℃ |
Length(mm) | Width(mm) | Thickness(mm) | Density(kg/m3) | ||
160 | 190 | 220 | |||
300 | 300 | 300 | √ | √ | √ |
600 | 300 | 300 | √ | √ | √ |
Industry Applications and Advantages:
Characteristic:
(1) Low heat capacity, low thermal conductivity.
(2) Excellent thermal stability and thermal vibration resistance.
(3) Excellent flexibility.
(4) Easy & fast to be installed. Long usage under safe conditions.
Typical Application:
(1) Furnace lines for various industrial furnace and heating equipment in metal.lurgy& hot mill. such as ladle cover heat treatment oven and curing oven.
(2) Furnace lining in other industries.
Production Workshop:
Related Products:
Customer Visits:
Offline Exhibitions:
Company Introduction:
FAQ:
Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;
Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.
Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.
Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at 1set for machine. Pls contact us for details we will try to meet your requirement.
Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.
Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
